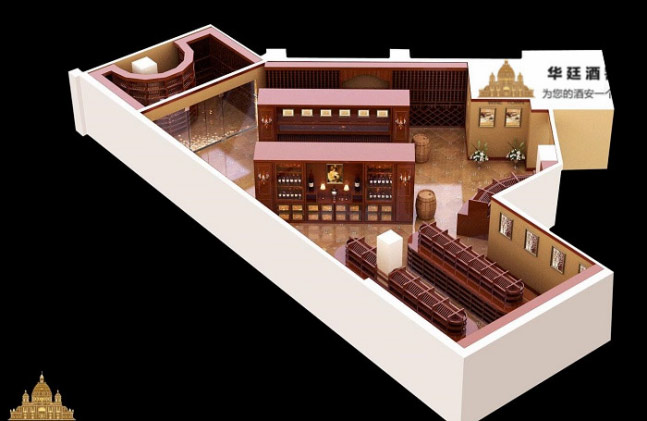

The project is located at The Ritz-Carlton, Beijing. The hotel needs to provide hotel customers with a place for professional wine selection and procurement, so the wine cellar has room temperature storage area, high-end temperature storage area, celebrity wine display area, VIP wine storage area , Conventional sales display area and other functional areas, with the support of high-end wine cellars, thewhole hotel grade and the appeal to customers has been further improved.

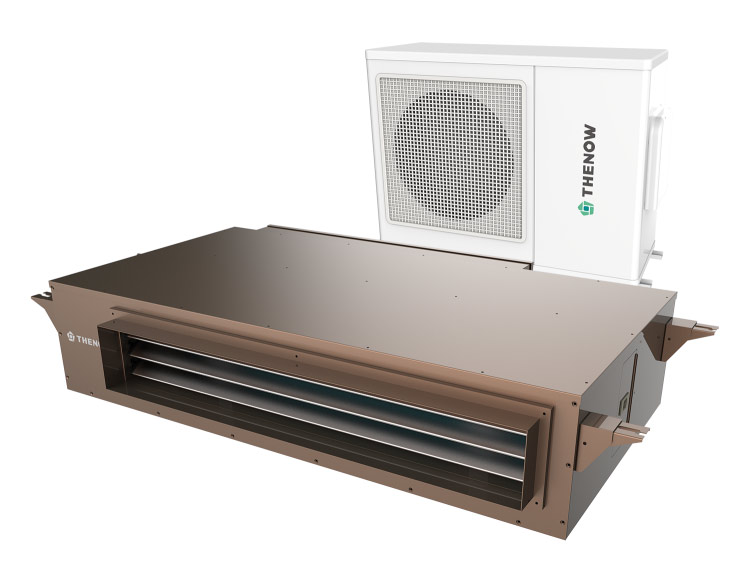

Three wine cellar cooling split units were used in this project. They are HSN-J60, HSN-J90 and HSN-J30.
| Model | Unit | HSN-J15 | HSN-J30 | HSN-J60 | HSN-J90 | HSN-J150 |
| Cellar Size | m³ | 43900 | 44134 | 30-60 | 60-90 | 90-150 |
| Power | P | 0.5 | 1 | 2 | 3 | 5 |
| Power Supply | V/HZ | 220/50 | 380/50 | |||
| Cooling | KW | 1.2 | 2.5 | 5 | 7.5 | 12.5 |
| Heater | KW | 1 | 1.6 | 3 | 6 | 9 |
| Air Flow | m3/h | 200 | 350 | 700 | 1100 | 1250 |
| Static Pressure | Pa | 30 | 30 | 30 | 40 | 50 |
| Noise | dB（A） | 50 | 50 | 50 | 53 | 62 |
| Refrigerant | / | R134A | R410A/R407C | |||
| Controller | PC Full-touch smart control | |||||
| Temperature | ℃ | 10-16℃, ±2℃ | ||||
| Humidity | ℃ | 50~70%, ±5% | ||||
| Total Power | KW | 1.7 | 2.9 | 4.4 | 8.9 | 14 |
| Humidifier | Type | Wet-film | ||||
| Humidification | Kg/h | 1 | 2 | 2 | 4 | 6 |
| Indoor Unit Size | L*W*H(mm) | 885*375*315 | 945*790*300 | 1345*790*300 | 1545*790*300 | 1945*890*350 |
| Outdoor Unit Size | L*W*H(mm) | 700*300*460 | 860*300*540 | 860*300*540 | 960*360*860 | 1010*425*1250 |
| Tube Connection | Liquid(mm) | 6.35 | 6.35 | 9.52 | 9.52 | 12.7 |
| Gas(mm) | 9.52 | 9.52 | 12.7 | 15.88 | 19.05 |
