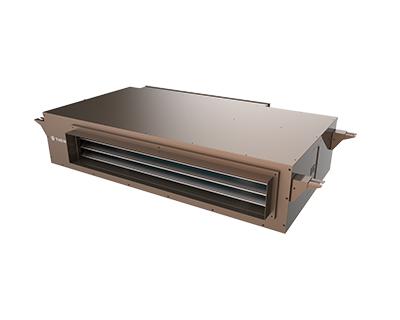

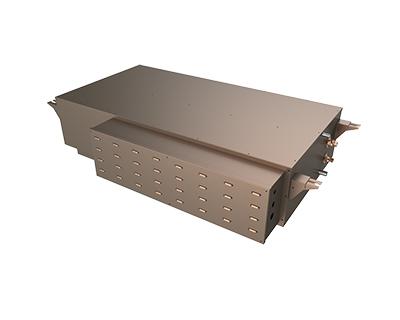

Thenow wine cellar cooling units split system is intended for cellars without access to proper ventilation. They are known for their efficiency and longevity. Each unit is designed to maintain a consistent temperature and humidity in spaces where proper ventilation is not feasible. The evaporator is installed inside and the condensing unit can be placed as far as 30m away. Since it exhausts outside, split cooling systems operate quietly and reduce vibration inside the cellar, which is believed to negatively affect the quality of wine.
  • Product Description
  • Download

Wine Cellar Cooling Units Split System / HSN-J30 Features:

  • Auto cooling and heating mode, keep wine cellar under constant temperature.
  • The evaporator is nickel plated for corrosion protection
  • Adopt circulating water wet-film auto control humidification system,wet film is made of Swedish organic polymer material with sterilization and disinfection function.
  • Full touch control system, famous brand sensors, stable quality and performance.
  • Pull-out design wet film module, easy to replace
  • Control constant condensation temperature
  • Three speed air flow under auto control to maintain the ideal environment for long-term wine storage
  • Can be ceiling mounted, rack mounted

The specific parameters of Wine Cellar Cooling Units Split System / HSN-J30

Model Unit HSN-J30
Cellar Size (Up to) 30
Power P 1
Power Supply V/HZ 220V/50Hz
Cooling W 1120
Heating (Electrical) W 4000
Air Flow m3/h 450
Static Pressure Pa 30
Noise dB(A) 50 (Indoor)
Refrigerant / R410A
Controller PC Full-touch smart control
Temperature 10-16℃, ±2℃
Humidity 50~70%, ±5%
Total Power W 5300
Humidifier Type Wet-film
Humidification Kg/h 2
Indoor Unit Size L*W*H(mm) 945*790*300
Outdoor Unit Size L*W*H(mm) 860*300*540
Tube Connection Liquid(mm) 6.35
Gas(mm) 9.52
