Wine Cellar Cooling Units Through-the-Wall / JT20

Wine Cellar Cooling Units Through-the-Wall / JT20 Wine Cellar Cooling Units Through-the-Wall / JT20 Wine Cellar Cooling Units Through-the-Wall / JT20

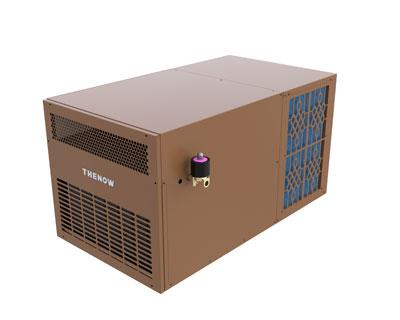

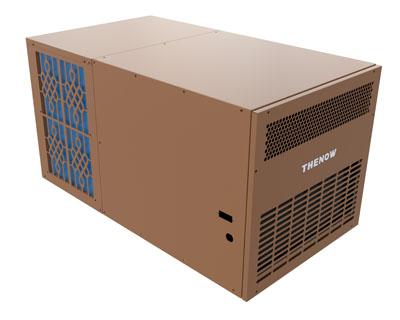

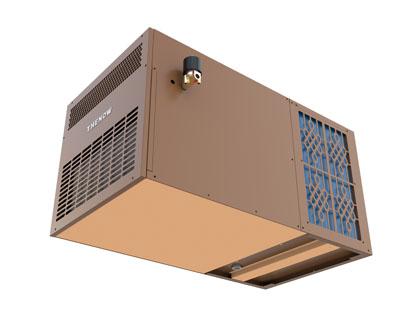

Thenow through-the-wall wine cellar cooling unit is specially designed to match the demands in foreign markets. It is a ductless wine cellar cooling units with evaporator and condenser are housed together in one unit. It offers a compact design that can be applied to the unique today's do-it-yourself modern wine cellar or wine wall.

  • Product Description

Wine Cellar Cooling Units Through-the-Wall / JT20 Features:


  • Compact design, flexible installation;
  • Quiet and efficient operation;
  • Build-in wet film pad and PTC heater, better control the temperature and humidity;
  • Intelligent control panel, famous brand sensors with stable quality, integrated ModBus connection;
  • Famous brand compressor, safe, stable and low energy consumption;
  • Traditional Chinese knot design air grille, better heat dissipation.


The specific parameters of Wine Cellar Cooling Units Through-the-Wall / JT20

Model

Unit

JT20

Cellar Size

Semi Buried

4~7

Insulated*

4~12

Power

V/HZ

220V/50Hz

Cooling

KW

0.72

Heating

KW

1

Air Flow

m3/h

170

Static Pressure

Pa

30

Noise

dB(A)

42

Refrigerant

/

R290

Control

/

PC Full-touch smart control

Temperature

10-18, ±2

Humidity

50~70%, ±5%

Total Power

KW

1.5

Humidifier

/

Wet-film

Humidity Capacity

Kg/h

1

Dimension (L*W*H)

mm

801*450*379

Drainage

mm

ф20


Note: Cellar inside dry-bulb t=12℃ 60% Outside dry-bulb t=35℃,wet-bulb t=28℃

     Insulated*: Cellar walls and ceiling insulation with 60mm polyurethane.

Cellar size in above sheet is just  experience value.  There are several factors such as glass, stone, concrete, insulation, ambient temperature, ventilation etc. which will change the required amount of Kw needed to properly cool your wine room or wine cabinet. We strongly recommend you contact with us or our distributors beforehand to help you to choose the model matched. We do not bear the losses caused by the selection errors caused by the above reasons.

Optional Accessories

Supply & return air flange
