Thenow wine cellar cooling units split system is intended for cellars without access to proper ventilation. They are known for their efficiency and longevity. Each unit is designed to maintain a consistent temperature and humidity in spaces where proper ventilation is not feasible. Since it exhausts outside, split cooling systems operate quietly and reduce vibration inside the cellar, which is believed to negatively affect the quality of wine.

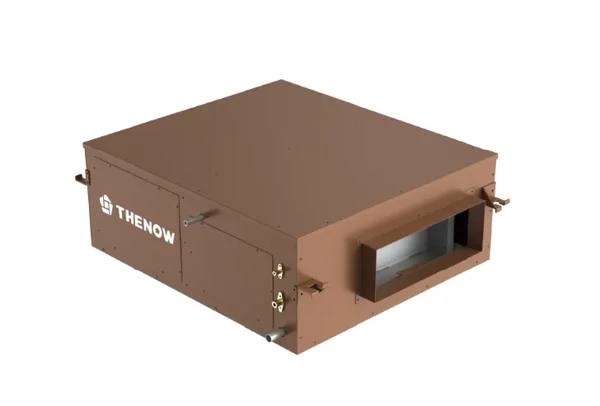

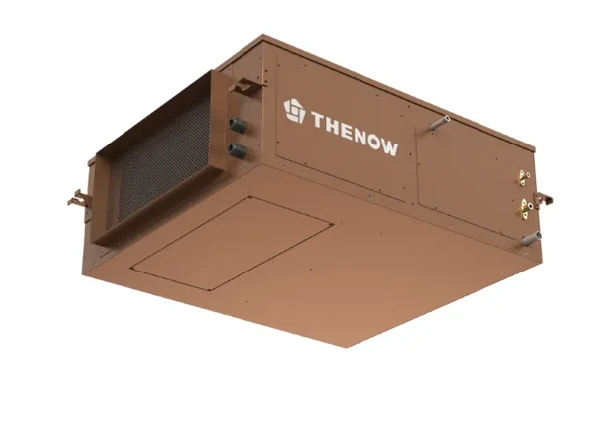

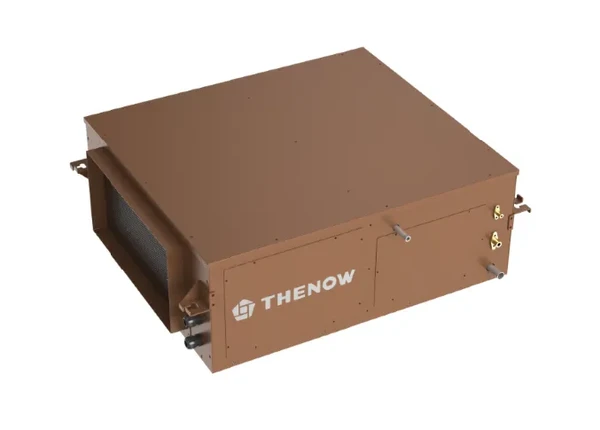

Thenow Split-Type Inverter Wine Cellar Air Conditioning System
The Thenow Split-Type Inverter Wine Cellar Air Conditioning System is a premium climate control solution specifically engineered for optimal wine storage. Unlike standard split-type systems, it features advanced inverter technology that automatically adjusts the compressor frequency according to the cellar’s temperature and humidity needs, ensuring precise and stable conditions at all times.
Designed for energy efficiency, this system significantly reduces power consumption and long-term operating costs. It delivers smooth, quiet operation, extended service life, and consistent performance—making it ideal for preserving the quality and longevity of your wine collection.
Perfectly suited for private wine cellars, luxury clubs, boutique wineries, and other high-end environments, the Thenow inverter system is the ultimate choice for discerning individuals who value a refined, high-quality lifestyle.
Features:
l Inverter Compressor – Delivers precise temperature and humidity control with significant energy savings, reducing long-term operating costs.
l Swedish Organic Wet-film Pad – Utilizes circulating water for natural, energy-efficient, and safe humidification. The pull-out design allows easy replacement, saving time and effort.
l Smart Touch Control Panel – Equipped with branded sensors for accurate temperature control and three-speed automatic airflow adjustment.
l Optimized Airflow Design – Ensures quiet operation while maintaining positive-pressure drainage for efficient and stable condensate removal.
l Nickel-Plated Evaporator – Enhances corrosion resistance for extended durability.
l Condenser Waste Heat Recovery – More energy-efficient compared to traditional electric heating.
l Side Air Return Vent – Enables flexible installation to suit diverse application scenarios.
l Built-In Electrical Box – Compact design with integrated component control for stable performance.
l Humidification Water Flow Control Kit – Prevents overflow due to high water pressure, ensuring safer operation. Upgraded solenoid valve reduces humidification noise.
l Water Level Alarm – Avoids overflow accidents, minimizing potential damage and after-sales issues.
l R32 Refrigerant – Eco-friendly with zero ODP (Ozone Depletion Potential) and lower GWP (Global Warming Potential) compared to conventional refrigerants.
Technical Data
Performance Moedel | VHSN-J30 | |
Power | / | 220V/50Hz |
Cellar Size | m3 | 15～30 |
Horse Power | P | 1 |
Cooling Capacity A | kW | 1.6 |
Cooling Capacity B | kW | 2.5 |
Heating Capacity | kW | 3 |
Air Flow | m3/h | 400 |
Static Pressure | Pa | 30 |
Nosie | dB(A) | 40 |
Controller | / | PC Full-touch smart control |
Temperature | ℃ | 10～18，±2 |
Humidity | %RH | 50～70，±5 |
Total Power | kW | 1 |
Humidifier | Type | Wet-film |
Indoor Unit Size | L*W*H（mm） | 900*764*340 |
Outdoor Unit Size | L*W*H（mm） | 758*336*500 |
Connection Tube Size | mm | Liquid6.35/Gas9.52 |
Note:
1. Cooling Capacity A Test Conditions:
Indoor (Wine Cellar): Dry-bulb temperature (T) = 12°C, Relative humidity (RH) = 60%
Outdoor: Dry-bulb temperature (T) = 35°C, Relative humidity (RH) = 60%
2. Cooling Capacity B Test Conditions:
Indoor (Wine Cellar): Dry-bulb temperature (T) = 27°C, Relative humidity (RH) = 60%
Outdoor: Dry-bulb temperature (T) = 35°C, Relative humidity (RH) = 60%
3.There are several factors such as glass,stone,concrete,insulation,ambient temperature,ventilation etc. which will change the required amount of Kw needed to properly cool your wine room or wine cabinet. We strongly recommend you contact with us or our distributors beforehand to help you to choose the model matched. We do not bear the losses caused by the selection errors caused by the above reasons.
