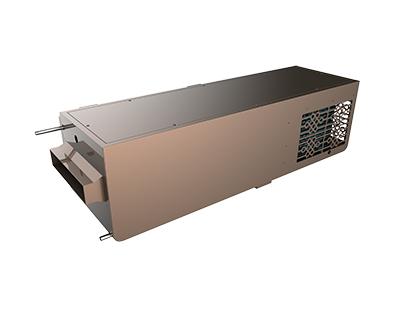

Wine Cellar Cooling Units Self-contained / HSN-J15-Z

Wine Cellar Cooling Units Self-contained / HSN-J15-Z Wine Cellar Cooling Units Self-contained / HSN-J15-Z Wine Cellar Cooling Units Self-contained / HSN-J15-Z
Thenow wine cellar cooling units self-contained is best suited for wine cabinets and smaller wine rooms. This unit is intended for use in cabinets of up to 5 cubic meters. Designed to lower the temperature at its best scope 10~18 degree centigrade, and maintains the humidity in your wine cabinet at optimal levels, between 50 and 70 percent. Small and compact, it is easy to set up and doesn’t require any piping or ducting, which could also help reduce the overall cost of the installation.
  • Product Description
  • Download

Wine Cellar Cooling Units Self-contained / HSN-J15-Z Features:

  • Condenser and evaporator combined inside one appliance, easy and fast to install
  • Intelligent control panel, famous brand sensors with stable quality, integrated ModBus connection
  • Suitable temperature between 10~18℃ and humidity maintenance at 50~70% RH
  • Unique appearance design, no vibration, lower noise
  • Optimal air distribution ensures the most uniform temperature in the wine cabinet space
  • Commercial-grade, corrosion resistant components and spray painting frame for long-term durability
  • Build-in wet film humidifier and heater, maintaining proper constant temperature and humidity

The specific parameters of Wine Cellar Cooling Units Self-contained / HSN-J15-Z

Model Unit HSN-J15-Z
Cellar Size (Up to) 5
Power P 0.5
Power Supply V/HZ 220V/50Hz
Cooling W 450
Heating (Electrical) W 2000
Air Flow m3/h 170
Static Pressure Pa 20
Noise dB(A) 42
Refrigerant / R134A
Controller PC Full-touch smart control
Temperature 10-16℃, ±2℃
Humidity 50~70%, ±5%
Total Power W 2500
Humidifier Type Wet-film
Humidification Kg/h 1
Indoor Unit Size L*W*H(mm) 1160*440*350
Outdoor Unit Size L*W*H(mm) /
Tube Connection Liquid(mm) /
Gas(mm) /
