Wine Cellar Cooling Units Self-contained / HSN-JC8

Wine Cellar Cooling Units Self-contained / HSN-JC8 Wine Cellar Cooling Units Self-contained / HSN-JC8 Wine Cellar Cooling Units Self-contained / HSN-JC8 Wine Cellar Cooling Units Self-contained / HSN-JC8 Wine Cellar Cooling Units Self-contained / HSN-JC8

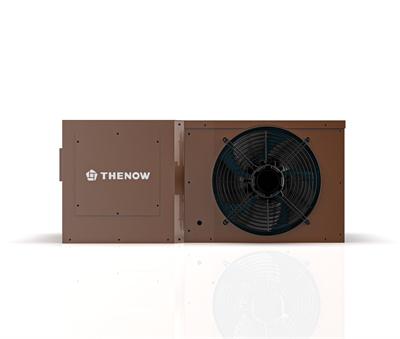

Thenow's plug-in type cooling unit is specially designed for smaller wine cabinet under 8 cubic meters, the product volume is only 7% of 1m³, which can be put into the cabinet very easily. Besides, plug-in type makes the installation becoming very simple and you don't need a licensed HVAC technician to install it for you, you may be able to install the unit yourself or an experienced handyman.
  • Product Description
  • Download

Wine Cellar Cooling System Plug-in Type, Compact sleek design, Flexible Mounting Features:

  • Compact plug-in design, easy to install;

  • Quiet and efficient operation;
  • Unique self-absorption drainage design;
  • Intelligent control panel, famous brand sensors with stable quality, integrated ModBus connection;
  • Famous brand compressor, safe, stable and low energy consumption;

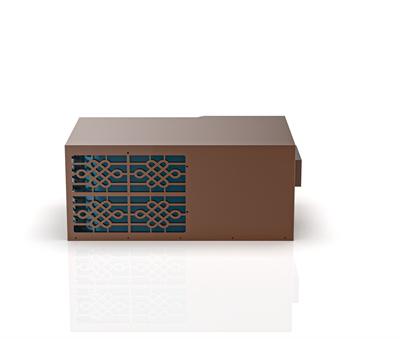

  • Traditional Chinese knot design air grille, better heat dissipation.

Technical datas

Model Unit HSN-JC8
Cellar Size (Up to) 8
Power V/HZ 220/50
Cooling W 500
HeatingElectrical W /
Air Flow(M m³/h 170
Static Pressure Pa 30
Nosie dB(A) 45
Refrigerant / R290
Control / PC Full-touch smart control
Temperature 10-18, ±2
Humidity /
Total Power W 700
Humidifier Type /
Humidification Kg/h /
Size(L*W*H) mm

758*498*310

Drainage mm Self-absorption

Cooling capacity on above sheet test conditions:

Cellar inside dry-bulb t=12℃ 60% Outside dry-bulb t=35℃wet-bulb t=28℃

Note: Cellar size in above sheet is just  experience value. There are several factors such as glass, stone, concrete, insulation, ambient temperature, ventilation etc. which will change the required amount of Kw needed to properly cool your wine room or wine cabinet. We strongly recommend you contact with us or our distributors beforehand to help you to choose the model matched. We do not bear the losses caused by the selection errors caused by the above reasons.

Common Mounting Methods:

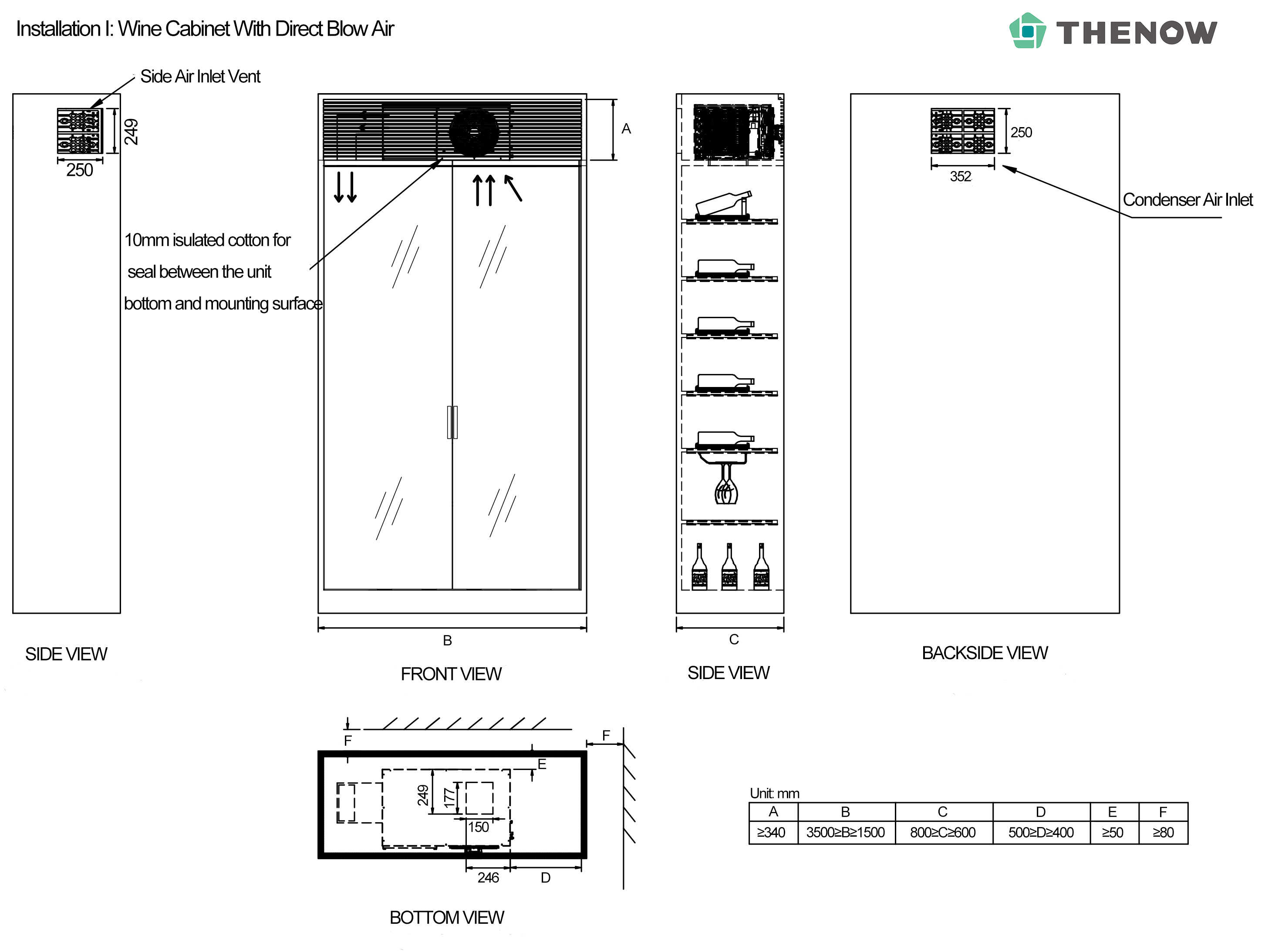

HSN-JC8 I: Wine Cabinet With Direct Blow Air

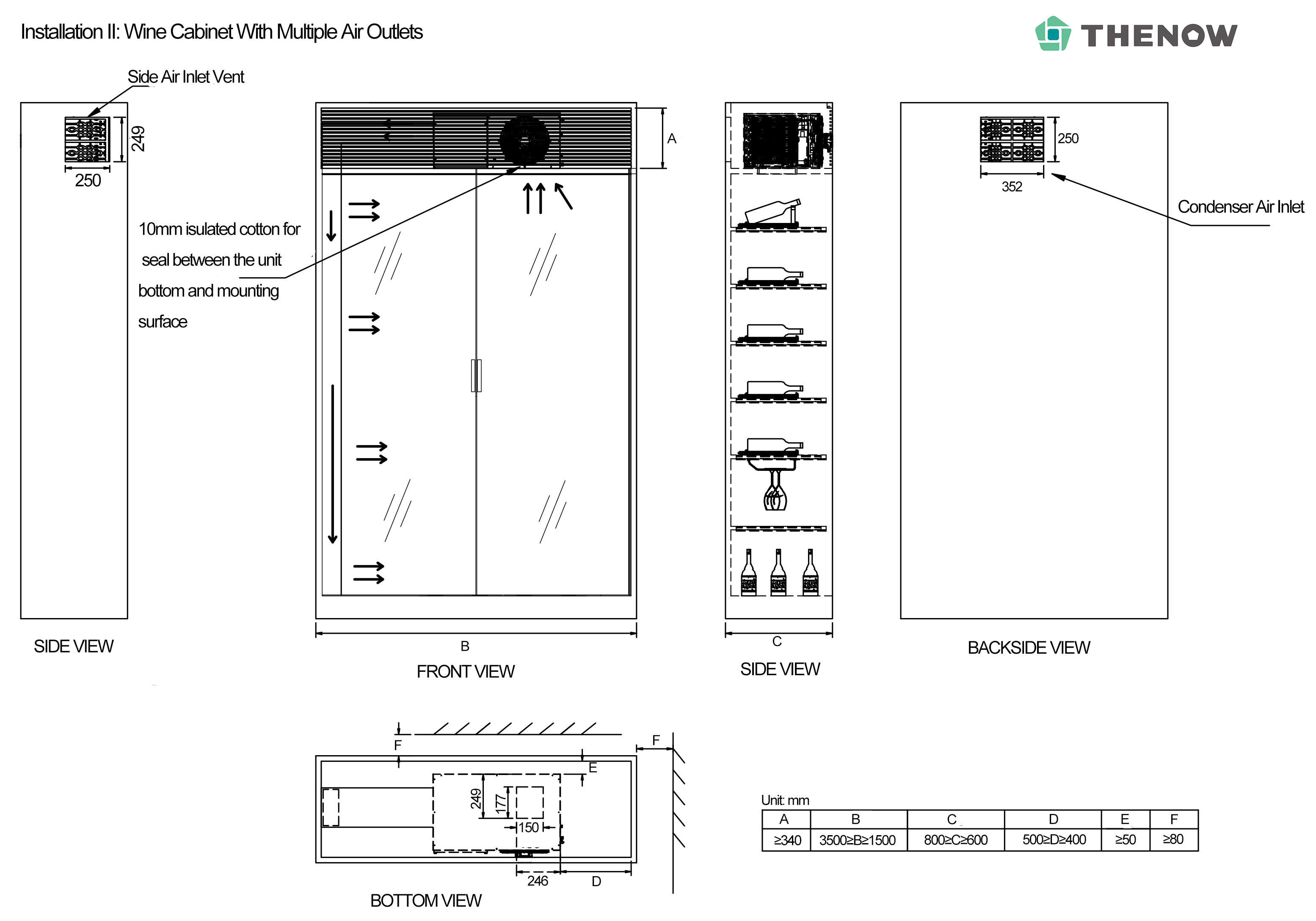

HSN-JC8 II : Wine Cabinet With Multiple Air Outlets

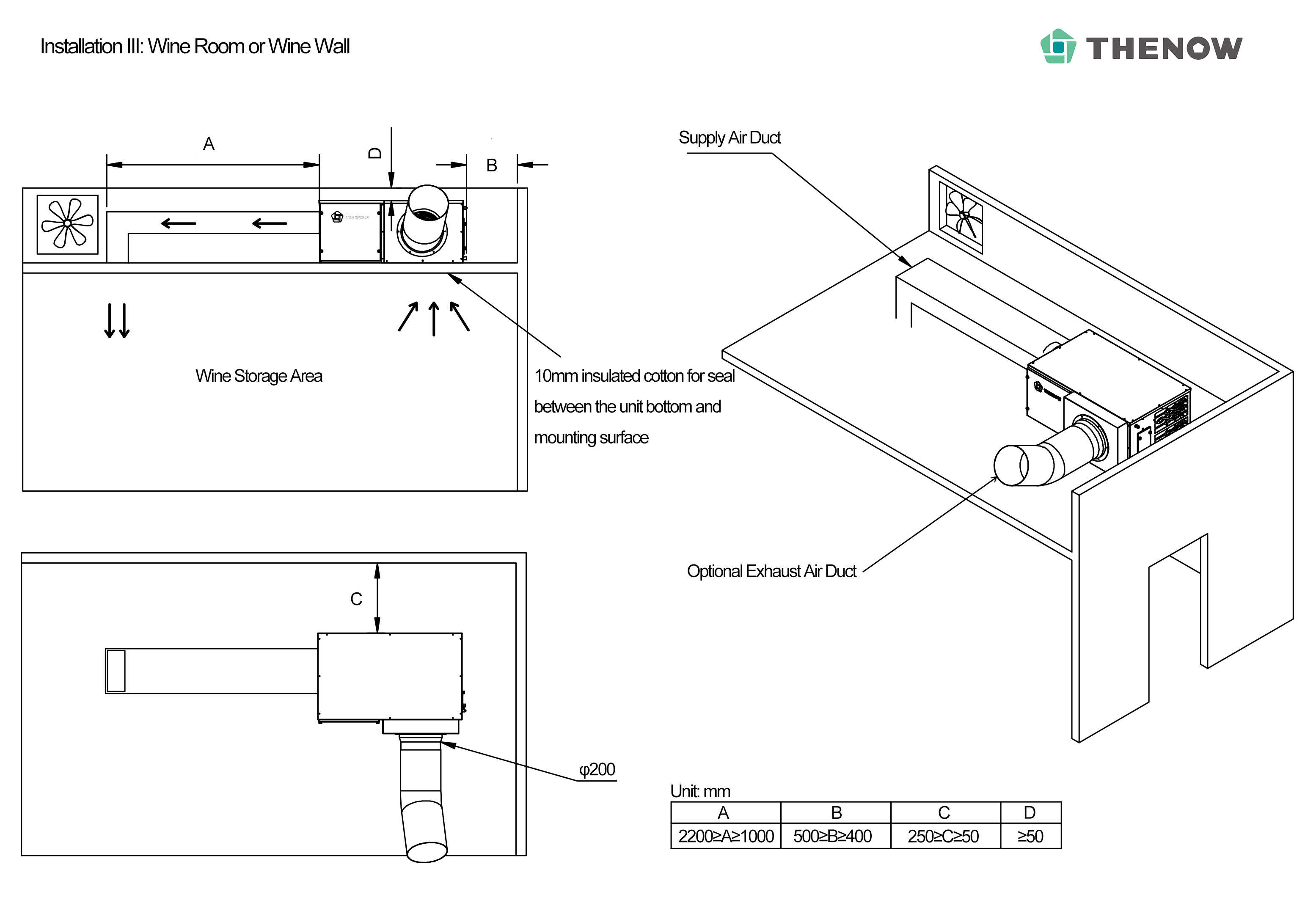

HSN-JC8 III: Wine Room or Wine Wall
