The Shanghai Exhibition Center is located in the absolute center of Shanghai, between Nanjing West Road and Yan'an Middle Road. It used to be the private garden of the Far East's richest man, Hartong. The mid-to-high-end exhibition is one of the landmark buildings in Shanghai. This time, we are very honored. Our partner, Wine town Cellar has been recognized by Party A for its own hard power. It was invited to the second floor of the second west hall of the exhibition center to design and construction of luxury restaurant wine cellar for high-end catering enterprises -- shangpin wine cellar

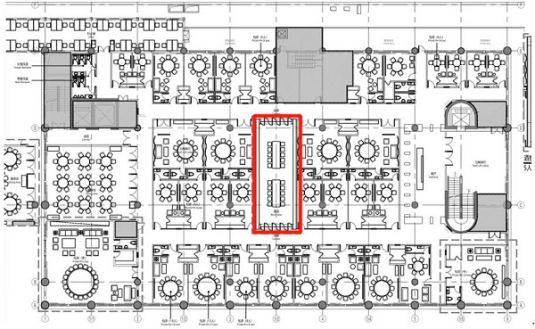

A corridor room was originally plan to do here, but the leaders after communication with us unanimously decided to give space to us as a wine cellar construction, we feel honored is also faced with the enormous pressure, because corridor itself has not done the thermal insulation moistureproof, and professional wine cellar needed by the constant temperature and humidity machine and it's need to this harsh environment, finally we passed the professional planning and discussion, settle scheme is historic buildings on the ground do not damaged, but around the walls and ceiling fill enough quantity of heat preservation, moistureproof materials, increase the wine cellar air-conditioning refrigeration power of constant temperature, and humidity effect of measures to ensure that the wine cellar.
A corridor room was originally plan to do here, but the leaders after communication with us unanimously decided to give space to us as a wine cellar construction, we feel honored is also faced with the enormous pressure, because corridor itself has not done the thermal insulation moistureproof, and professional wine cellar needed by the constant temperature and humidity machine and it's need to this harsh environment, finally we passed the professional planning and discussion, settle scheme is historic buildings on the ground do not damaged, but around the walls and ceiling fill enough quantity of heat preservation, moistureproof materials, increase the wine cellar air-conditioning refrigeration power of constant temperature, and humidity effect of measures to ensure that the wine cellar.
| Character | Model | HSN-J15 | HSN-J30 | HSN-J60 | HSN-J90 | HSN-J150 | |
| Power | 0.5P | 1P | 2P | 3P | 5P | ||
| Room Capacity | m3 | 5~15 | 10~30 | 30~60 | 60~90 | 90~150 | |
| Cooling | kW | 1.2 | 2.5 | 5 | 7.5 | 15 | |
| Heating | kW | 1 | 1.6 | 3 | 6 | 9 | |
| Circulating Air | m3/h | 200 | 350 | 700 | 1100 | 1600 | |
| External Static Pressure | Pa | 30 | 30 | 30 | 50 | 50 | |
| Noise | dB(A) | 45 | 50 | 50 | 53 | 60 | |
| Temperature | 10~16℃ ±2oC | ||||||
| Humidity | 50~70% ±5% | ||||||
| Power Supply | 220V-50HZ | 380V-50HZ | |||||
| Total Power | kW | 1.5 | 2.9 | 4.4 | 8.5 | 12 | |
| Refrigeration Working Output | kW | 0.5 | 0.85 | 1.6 | 2.4 | 4.8 | |
| Refrigerant | Type | R134a | R410a | ||||
| Throttling Mode | Capillary/Thermostatic Expension Valve | ||||||
| Compressor | Type | Rotor/Totally Enclosed Vortex | |||||
| Power | kW | 0.4 | 0.75 | 1.5 | 2.2 | 3.8 | |
| Evaporator | Copper tubes and aluminum fins | ||||||
| Heating | Type | Electric | |||||
| Power | kW | 1（optional) | 2 | 3 | 6 | 9 | |
| Humidifier | Type | Wet-film | |||||
| Humidification | kg/h | 1（optional) | 2 | 4 | 6 | ||
| Fan | Type | Low noise, double inlet, centrifugal | |||||
| Drive Mode | Inner Rotor | ||||||
| Air Filter | G4+F7(Optional)+Carbon（Optional） | ||||||
| Units Weight | Thinner Ceiling Type-kgs | 23 | 50 | 65 | 75 | 108 | |
| Liquid Tube | mm | 6.35 | 9.52 | 12.7 | |||
| Air Tube | mm | 9.52 | 12.7 | 15.88 | 19.05 | ||
| Indoor Unit | Size | LxWxH mm | 750*375*285 | 945*790*250 | 1345*790*250 | 1545*790*250 | 1945*840*300 |
| Outdoor Unit | Size | LxWxH mm | 680*260*460 | 810*275*540 | 840*300*600 | 900*300*850 | 1020*450*1360 |
