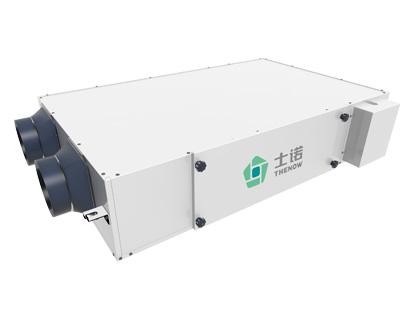

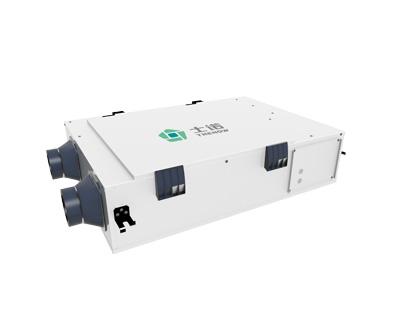

Residential Ceiling ERV/HRV With HEPA System-AG Series

Residential Ceiling ERV/HRV With HEPA System-AG Series Residential Ceiling ERV/HRV With HEPA System-AG Series
Thenow residential ceiling mounted energy recovery ventilator-HEPA Series added HEPA filters after G3 or F7 filter which can prevent the fine particles high efficiently. We have a completely range of energy recovery ventilation systems offering different levels of air flows and filters to adapt to different HVAC systems.

Features of Residential Energy Recovery Ventilator With HEPA System-AG Series

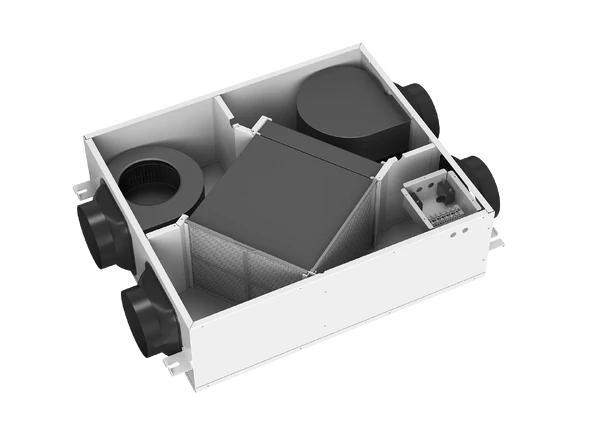

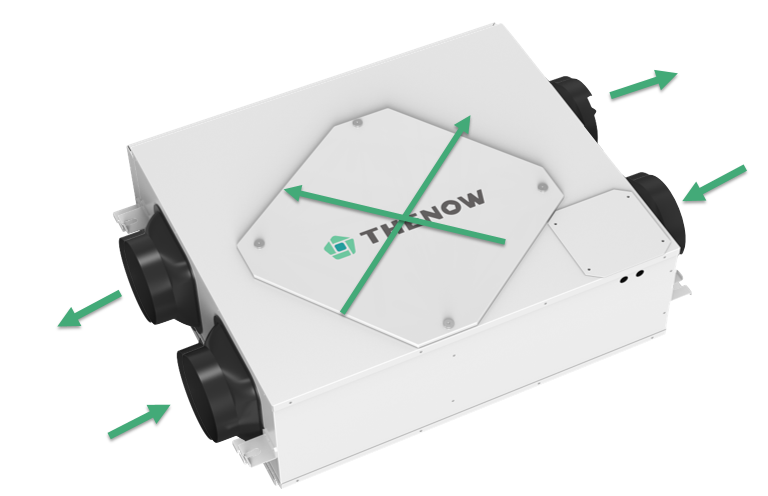

  • Innovative high efficiency counter flow full heat exchanger
  • Two types available: G3 filter + HEPA filter and G3 filter + F7 filter + HEPA filter
  • 218mm Ultra-thin design, save your space
  • High efficiency DC motor, low noise
  • Bypass is optional
  • Pre heating is optional
  • CO2 , VOC, PM2.5 and humidity sensors are optional
  • Sensible heat recovery unit is optional

Application of Residential Air Exchanger System With HEPA System-AG Series:

Residential building, Hospital, Offices and shops, Kindergarten, Schools, Hotels, Villa etc.

Technical Datas of Residential Ventilation Systems With HEPA System-AG Series

Model

Voltage

Rated Power(W)

Air Flow
(m³/h)

Enthalpy Efficiency(%)

Outlet Total Pressure(Pa)

Noise dB(A)

Weight
(kg)

Size
(LxWxT mm)

H

H

H

H

H

TSX150-AG01

220V 50Hz 1PH

95

150

66

80

37

22

936x640x205

TSX250-AG02

220V 50Hz 1PH

110

250

64

95

40

23

955x640x220

TSX350-AG01

220V 50Hz 1PH

176

350

63

100

43

26

960x702x260

TSX250-AG01

220V 50Hz 1PH

78

250

74

100

38

31

1175x686x218

TSX300-AG01

220V 50Hz 1PH

98

300

72

110

41

34

1245x815x218

TSX500-AG01

220V 50Hz 1PH

180

500

72

140

45

49

1230x1150x312
