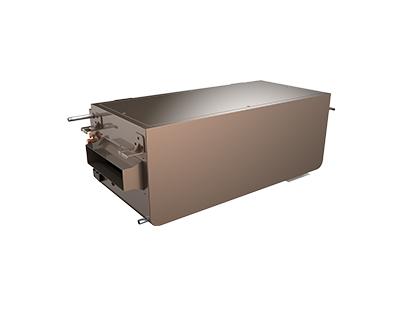

Wine Cellar Cooling Units Split System / HSN-J15

Wine Cellar Cooling Units Split System / HSN-J15 Wine Cellar Cooling Units Split System / HSN-J15 Wine Cellar Cooling Units Split System / HSN-J15 Wine Cellar Cooling Units Split System / HSN-J15
Thenow wine cellar cooling units split system is intended for cellars without access to proper ventilation. They are known for their efficiency and longevity. Each unit is designed to maintain a consistent temperature and humidity in spaces where proper ventilation is not feasible. The evaporator is installed inside and the condensing unit can be placed as far as 30m away. Since it exhausts outside, split cooling systems operate quietly and reduce vibration inside the cellar, which is believed to negatively affect the quality of wine.
  • Product Description
  • Download
Features:
  • Auto cooling and heating mode, keep wine cellar under constant temperature.
  • The evaporator is nickel plated for corrosion protection
  • Adopt circulating water wet-film auto control humidification system,wet film is made of Swedish organic polymer material with sterilization and disinfection function.
  • Full touch control system, famous brand sensors, stable quality and performance.
  • Pull-out design wet film module, easy to replace
  • Control constant condensation temperature
  • Three speed air flow under auto control to maintain the ideal environment for long-term wine storage
  • Can be ceiling mounted, rack mounted, or floor mounted

Character Model HSN-J15 HSN-J30 HSN-J60 HSN-J90 HSN-J150
Power 0.5P 1P 2P 3P 5P
Room Capacity m3 5~15 10~30 30~60 60~90 90~150
Cooling kW 1.2 2.5 5.0 7.5 12.5
Heating kW 1 2.0 3.0 6.0 7.5
Circulating Air m3/h 200 400 700 1100 1800
External Static Pressure Pa 30 30 30 50 65
Noise dB(A) 45 50 50 53 62
Temperature 10~16℃ ±2oC
Humidity 50~70% ±5%
Power Supply 220V-50HZ 380V-50HZ
Total Power kW 1.5 3.8 5.8 8 10
Refrigeration Working Output kW 0.5 0.85 1.6 2.4 4.8
Refrigerant Type R22/R407C/R134a/R404A
Throttling Mode Capillary/Thermostatic Expension Valve
Compressor Type Rotor/Totally Enclosed Vortex
Power kW 0.4 0.75 1.5 2.2 3.8
Evaporator Copper tubes and aluminum fins
Heating(Optional) Type Electric
Power kW 1 2.0 3.0 6.0 7.5
Humidifier(Optional) Type Wet-film
Humidification kg/h 1 2 4 6
Fan Type Low noise,double inlet,centrifugal
Drive Mode Inner Rotor
Air Filter G4+F7(Optional)+Carbon(Optional)
Units Weight Thinner Ceiling Type-kgs 26.5 50 65 75 85
Liquid Tube mm 6.35 6.35 9.52 12.7
Air Tube mm 9.52 9.52 12.7 15.88 19.05
Indoor Unit Size LxWxH mm 700*285*375 760*600*250 1160*600*250 1360*600*250 1760*600*250
Outdoor Unit Size LxWxH mm 680*260*460 810*275*540 840*300*600 900*300*850 1020*450*1360
