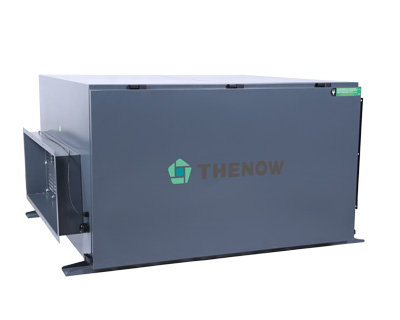

Ceiling Mounted Dehumidifier

Ceiling Mounted Dehumidifier
As we all know moisture in the house can create humidity,and this muggy air can make you uncomfortable especially on those warm summer days, the moisture in the air makes it feel much hotter than what the thermometer says.Aside from the lack of comfort, a rise in excess air moisture can actually lead to building and property damage, can have dramatic and ongoing health repercussions for your family.
  • Product Description
  • Download
Thenow ceiling mounted dehumidifier, according to the dehumidification capacity, can remove 28L to 120L moisture per day from the air and replace it with fresh, filtered air. The duct mounted dehumidifier helps to keep indoor air at a reasonable humidity level, which helps to keep every member of the family healthy.

Features of Ceiling Mounted Dehumidifier:

  • Super dehumidification, capacity from 28l to 120l per day, keep your family away from dampness
  • whole house dehumidification with one machine
  • Environmental refrigerant, more environmentally friendly and efficient
  • High energy efficiency ratio, the dehumidification effect is better at the same energy consumption.
  • Four- stage air speed, three gear adjustment within display board, wider control range, more quiet.
  • Differential two-device design, more dew point temperatures and dehumidification can be obtained.
  • Modular push-pull design is convenient for maintenance.
  • Positive pressure drainage, no leaks. Keep the tray dry and avoid bacterial breeding.
  • No need for water bending, drainage has power, installation does not require strict level.
  • Standard 485 communication interface, make all interconnection possible.
  • App control, which can be controlled anytime,anywhere
  • One key intelligent control, no need to manually switch fresh air valve.

Data of Ceiling Dehumidifier

Model CT-28/300-GD01 CT-40/400-GD01 CT-60/500-GD01 CT-120/800-GD01 CT-160/1000-GD01
Power supply 1PH/220V/50Hz
Supply Air(m3/h) 300 400 500 800 1000
Power(W) 300 620 700 920 1160
Dehumidification(L/D) 28 40 60 120 160
Residual Pressure(Pa) 30 20/80 70/100 80/120 80/120
Max Length of Duct(m) 5 15 20 25 25
Application area(m²) < 40 <60 <110 <150 <200
Noise dB(A) 46 52 56 59 60
Outline Dimension 830*433*285 950*538*265 950*538*265 1030*639*375 1030*639*375
Return air outlet 100 150 150 200 200
Supply air intlet 100 150 150 200 200
