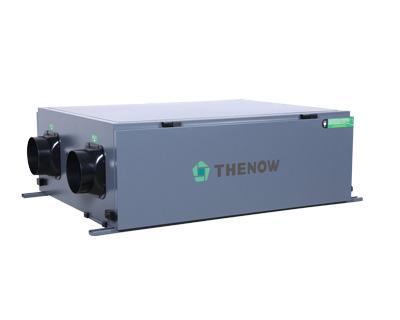

Ventilating Dehumidifier-GD Series

Ventilating Dehumidifier-GD Series
Indoor humidity produced by human activity(showering, cooking, perspiring, and even breathing) can build up to very high level, it does more than make us uncomfortable. This can encourage the growth of organisms harmful to our health, and over time, it's bad for the structure and furnishings, such as rusting. Besides, without sufficient ventilation, we cannot be guaranteed with enough fresh air either. At the same time indoor CO2 and other harmful odors cannot drift away.
So here we combine the dehumidifier and ventilator together to provide occupiers with fresh and dry comfortable air. This is Thenow whole house ventilating dehumidifier-GD series is not only dehumidifier, but also it can bring in fresh air when needed.

Features of Ventilating Dehumidifier-GD Series

  • Danfoss Reliable Compressor for long hour continuous and stable operation.
  • Imported BLDC EBM motor
  • Air Purification system:
  • Medium Filter, HEPA Filter, Activated Carbon Filter, UV Sterilizing Lamp and Negative Ionizer
  • Unique designed drain pan(positive drainage, no water leakage
  • Three speeds available
  • Equipment filled with environmental friendly refrigerant of R134A.
  • Advance touch sensitive panel with intelligent controller and user friendly operation (Air Quality index display). Standard 485 interface, WIFI available.
  • Automatic defrosting system
  • High static pressure
  • Modular design, easy maintenance
  • Insulation design for the whole device, no condensation
  • Fan and compressor both with sound-proof cotton, very low noise.

Specifications&Technical Parameter of Ventilating Dehumidifier System-GD Series

Part One
Model Power Supply Air Supply(m/h) Fresh Air Supply(m/h) Power Dehumidification(L/D) Residual pressure(Pa) Air Return+
The sum of the length of outlet duct(M)
Application area(m²)
The height of 2.6 meters
Noise(d/B A) Outline Dimension Diameter of return air outlet(mm) Diameter of fresh air inlet(mm) Air inlet diameter(mm)
CXJT28/300-GD01 1PH/220V/50Hz 300 0-150 540 28 30/90 15 40 45 760*455*265 ø100 ø100 ø100
CXJT40/400-GD01 1PH/220V/50Hz 400 0-200 590 40 50/120 20 60 50 950*538*265 ø150 ø100 ø150
CXJT60/500-GD01 1PH/220V/50Hz 500 0-250 1050 60 20/80/150 25 110 55 950*538*265 ø150 ø100 ø150
CXJT120/800-GD01 1PH/220V/50Hz 800 0-350 1450 120 120 25 150 58 1030*639*375 ø200 ø150 ø200
CXJT160/1000-GD01 1PH/220V/50Hz 1000 0-450 2300 160 150 30 200 60 1030*639*375 ø200 ø150 ø200

Part Two
Model Power Supply Air Supply(m/h) Power(W) Dehumidification(L/D) Residual pressure(Pa) Air Return+
The sum of the length of outlet duct(M)
Application area(m²)
The height of 2.6 meters
Noise(d/B A) Outline Dimensions(mm) Diameter of return air outlet Diameter of supply air intlet
CT190/1600-GD01 3PH/380V/50Hz 1600 3300 190 180 30 <260 62 1370*820*640 500*400 356*313
CT240/2500-GD01 3PH/380V/50Hz 2500 5000 240 200 35 <400 65 1370*820*640 500*400 356*313
CT350/3200-GD01 3PH/380V/50Hz 3200 7500 350 230 38 <550 68 1370*1120*720 750*450 818*313
CT480/5000-GD01 3PH/380V/50Hz 5000 10000 480 250 40 <800 70 1370*1120*720 750*450 818*313

Leave a Message Email Us

we will contact you within 24 hours.

Ventilating Dehumidifier-GD Series Application
