Residential Ceiling ERV/HRV With ESP System-AF Series

Residential Ceiling ERV/HRV With ESP System-AF Series Residential Ceiling ERV/HRV With ESP System-AF Series Residential Ceiling ERV/HRV With ESP System-AF Series
Constant fresh air in your home is an important aspect to maintain the indoor air quality. A good ventilation system will protect your family from unpleasant odos and harmful contaminants such as formaldehyde and VOCs. Opening window is a simply way to increase ventilation, it can make your air feel less stuffy, but pollen and other allergens will be invited into your home at the same time.
  • Product Description
  • Download

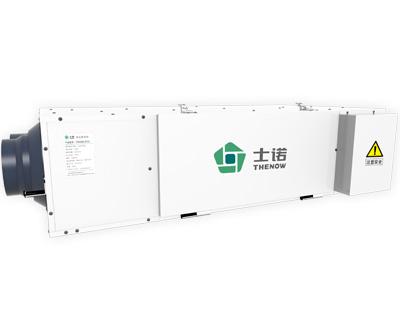

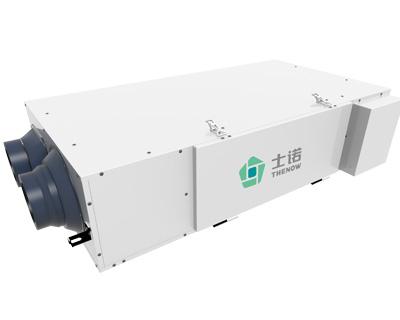

Thenow residential ceiling mounted energy recovery ventilator (ERV)-ESP System AF Series, different from traditional physical filtration, adopt its patented Pure ESP sterilization system with bacterial killing efficiency up to 99.99% and particles filtration fineness small to 0.001 micron. Thenow energy recovery ventilator ESP system, will exchange stale polluted air with fresh and clean outdoor air without wasting energy.

Features of Residential Ceiling ERV With ESP System-AF Series

  • Innovative high efficiency counter flow full heat exchanger
  • Four-layers filtration
  • PM2.5-PM0.001 purification efficiency up to 99.99%
  • Patented Pure ESP sterilization system filter the air without producing ozone
  • High efficiency DC motor, low noise
  • Bypass is optional
  • Pre heating is optional
  • CO2 , VOC, PM2.5 and humidity sensors are optional
  • Sensible heat recovery unit is optional

Application of Home Fresh Air Ventilation System With ESP System-AF Series:

Residential building, Hospital, Offices and shops, Kindergarten, Schools, Hotels, Villa etc.

Technical Datas of Residential Fresh Air Exchanger With ESP System-AF Series

Model

Voltage

Rated Power

(W)

Air Flow
(m³/h)

Enthalpy Efficiency

(%)

Outlet Total Pressure

(Pa)

Noise dB(A)

Weight
(kg)

Size
(LxWxT mm)

H

H

H

H

H

TSX200-AF01

220V 50Hz 1PH

120

200

72

100

39

34

1240x666x270

TSX300-AF01

220V 50Hz 1PH

152

300

71

108

42

38

1240x782x270

TSX400-AF01

220V 50Hz 1PH

178

400

69

120

45

44

1240x920x270

TSX500-AF01

220V 50Hz 1PH

225

500

74

135

47

54

1290x1068x314
