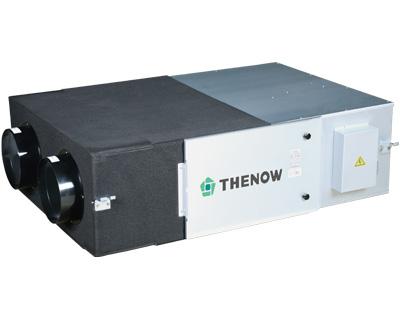

Commercial Ceiling Mounted ERV/HRV-AQ Series

Commercial Ceiling Mounted ERV/HRV-AQ Series Commercial Ceiling Mounted ERV/HRV-AQ Series
Thenow commercial ceiling mounted energy recovery ventilator -AQ Series, different with HEPA series, it was designed without HEPA and medium filters but only keep pre-filters, the ERV fresh air system is widely used in big areas and large commercial applications. Thanks to our energy recovery ventilator/energy recovery productscontinuous fresh air will be introduced into the indoor area with lower cost.
  • Product Description
  • Download

Features of Commercial Ceiling Mounted ERV Fresh Air System-AQ Series

  • Higher heat recovery efficiency: special designed insulation structure and heat exchanger core
  • High air capacity:400~6000cmh
  • Unique structure design, lower noise
  • Sensible heat recovery unit is optional

Application of ERV Mechanical Unit-AQ Series:

Office buildings, hotel, theater, library, shops, clubs, studios, etc.

Technical Datas of ERV Mechanical Unit-AQ Series

Model Voltage Rated Power(W) Air Flow(m³/h) Enthalpy Efficiency(%) Outlet Total Pressure(Pa) Noise dB(A) Weight(kg) Size
(LxWxT mm)
H M L H M L H M L H M L H M L
TSX500-AQ01 220V 50Hz 1PH 220 130 170 500 450 400 74 75 76 100 38 35 32 48.5 1130x1106x312
TSX600-AQ01 220V 50Hz 1PH 230 200 180 600 540 450 71 73 74 110 39 36 32 50 1130x1106x312
TSX850-AQ01 220V 50Hz 1PH 350 330 310 850 700 600 72 73 74 150 41 37 33 71.5 1488x995x396
TSXS100-AQ01 220V 50Hz 1PH 485 440 400 1000 900 800 73 74 75 180 41 37 33 77 1488x1246x396
TSXS120-AQ01 220V 50Hz 1PH 495 450 430 1200 1100 1000 71 73 74 200 42 38 33 85 1488x1246x396
TSXS150-AQ01 220V 50Hz 1PH 520 480 410 1500 1350 1200 70 71 72 180 170 160 52 50 48 110 1355x1021x467
TSXS200-AQ01 220V 50Hz 1PH 800 650 600 2000 1800 1600 70 71 72 200 190 180 54 52 50 131 1580x1160x558
TSXS250-AQ01 220V 50Hz 1PH 1100 1000 800 2500 2300 2100 70 71 72 250 230 205 56 54 52 145 1620x1260x558
TSXS300-AQ01 220V 50Hz 1PH 1400 1300 1100 3000 2800 2600 70 71 72 250 240 230 60 58 56 167 1780x1360x558
TSXS350-AQ01 380V 50Hz 3PH 1800 3500 70 250 62 185 1780x1460x558
TSXS400-AQ01 380V 50Hz 3PH 2000 4000 70 280 62 199 1780x1560x558
TSXS450-AQ01 380V 50Hz 3PH 2200 4500 70 300 64 280 2100x1660x838
TSXS500-AQ01 380V 50Hz 3PH 2200 5000 70 300 64 291 2100x1760x838
TSXS600-AQ01 380V 50Hz 3PH 3000 6000 70 320 67 302 2100x2020x838
